Desktop Type 16.8V 3A 3.5A Li-ion Battery Charger Smart Fast charger for Power Tool Electric Wheelchair

Xinsu Global 4S 14.8V lithium ion battery 16.8V charger, the sealed PC enclosure, fanless. stable quality with full safety certificates CB, UL, cUL, FCC, UKCA, CE, GS, SAA, KC, CCC, safe and quiet.AC inet: IEC-320-C6, IEC-320-C8, IEC-320-C14. Small size, high efficiency, low temperature rise. The annual sales volume is as high as 5 million units, and the products are exported to the United States, Britain, France, Germany, Australia, South Korea, Japan and other countries and regions. We believe that our safe chargers will make people's lives better.

AC voltage 100-240V input to output DC 16.8V 3A 3.5A Li-ion Battery charger

Safety certificates: CB, PSB, PSE, CE, UKCA, UL, cUL, FCC, CCC, KC

Model：XSG1683000, Output: 16.8 volt 3Amp, power 50.4W

Model：XSG1683500, Output: 16.8 volt 3.5 Amp, power 58.8W

Protection: Short circuit protection, over voltage protection, over current protection, polarity reverse protection, current reverse protection, second voltage limit protection.

For battery type: 4s 14.8V lithium battery pack

Size: 116*52*33.8mm

Weight: 350g

Input:

1. INPUT VOLTAGE RANGE：90Vac to 264Vac

2. RATED INPUT VOLTAGE：100Vac to 240Vac.

3. INPUT FREQUENCY RANGE：47Hz to 63Hz

4. OPERATION TEMPERATURE: -20°C - 40°C

5. STORAGE TEMPERATURE: -30°C - 70°C

LED indicator: LED turn red to Green when fully charge the battery. intelligent 3 stage charge mode, constant current to constant voltage to trickle current

Charging Status	Charging Stage	LED indicator
Charging	Constant Current
	Constant Voltage
Charged Full	Trickle Charging

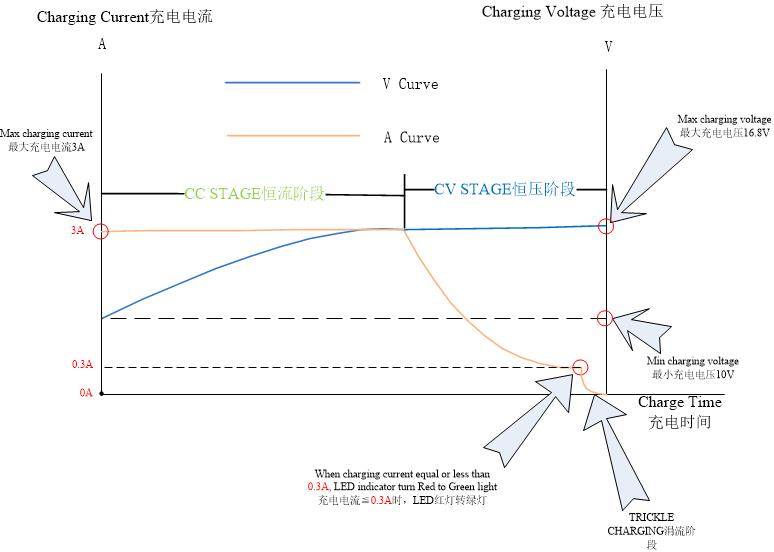

Working graph:

Drawings:
