UL1310 Approved Fixed Plug Wall Charger 21V 1A Lithium Ion Battery Charger for Electric Drill Flashlight Featured Image
  • UL1310 Approved Fixed Plug Wall Charger 21V 1A Lithium Ion Battery Charger for Electric Drill Flashlight
  • UL1310 Approved Fixed Plug Wall Charger 21V 1A Lithium Ion Battery Charger for Electric Drill Flashlight
  • UL1310 Approved Fixed Plug Wall Charger 21V 1A Lithium Ion Battery Charger for Electric Drill Flashlight
  • UL1310 Approved Fixed Plug Wall Charger 21V 1A Lithium Ion Battery Charger for Electric Drill Flashlight
  • UL1310 Approved Fixed Plug Wall Charger 21V 1A Lithium Ion Battery Charger for Electric Drill Flashlight
  • UL1310 Approved Fixed Plug Wall Charger 21V 1A Lithium Ion Battery Charger for Electric Drill Flashlight
  • UL1310 Approved Fixed Plug Wall Charger 21V 1A Lithium Ion Battery Charger for Electric Drill Flashlight

XSG2101000

UL1310 Approved Fixed Plug Wall Charger 21V 1A Lithium Ion Battery Charger for Electric Drill Flashlight

Features：

21V 1A charger for the 5s 18.5V lithium battery pack, supporting OEM and ODM services

Datasheet Video

Product Detail

UL1310 Approved Fixed Plug Wall Charger 21V 1A Lithium Ion Battery Charger for Electric Drill Flashlight

Model：XSG2101000, Safety certificates: UL, cUL, FCC, PSE, CE, GS, SAA, KC, CCC

Voltage: 21V, Current: 1A, power 21W



Input:

1. INPUT VOLTAGE RANGE：90Vac to 264Vac

2. RATED INPUT VOLTAGE：100Vac to 240Vac.

3. INPUT FREQUENCY RANGE：47Hz to 63Hz



Portections:

Over voltage protection, Over current protection, Short circuit protection, Polarity reverse proetction, the second over voltage protection.



2 color LED indicator: LED turn red to Green when fully charge the battery.

Charging Status Charging Stage LED indicator
Charging Constant Current   Red Green
Constant Voltage
Charged Full Trickle Charging Green Light

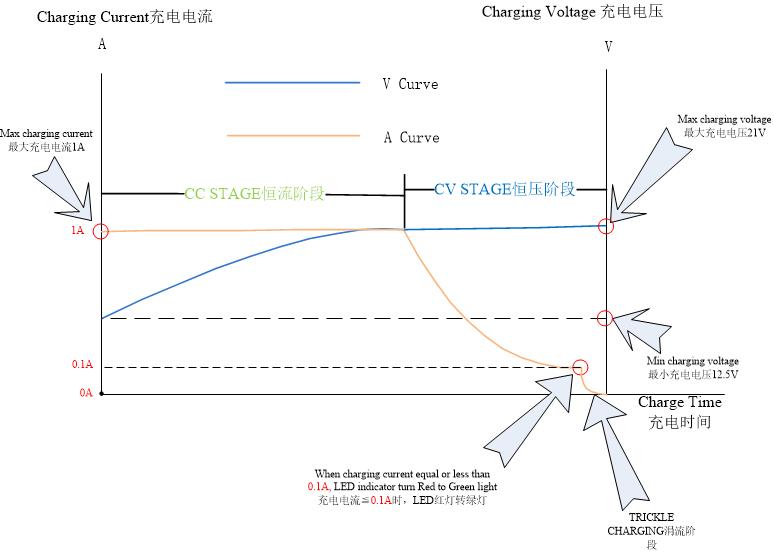

Charging diagram

21V 1A锂电池充电器充电曲线图

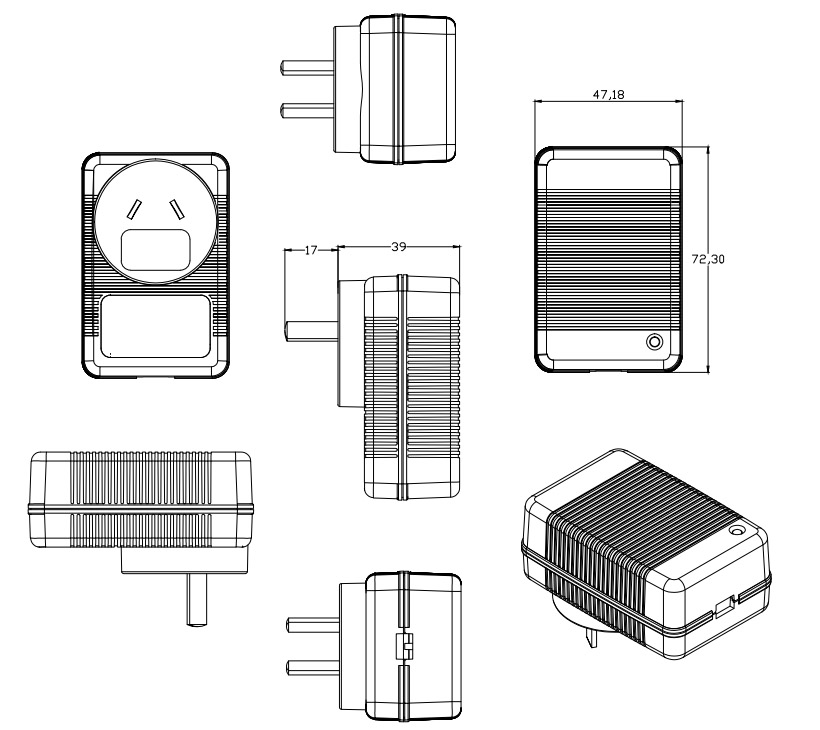

Drawings: L72.3* W47.1* H39mm

24W澳规-带灯

What products will the charger be used for?

5S Li-Ion battery pack, Electric robot, electric sprayer, electric respirator, electric toys, rechargeable LED lamp, emergency lighting.etc

Choose Xinsu Global:

1. Xinsu Global has 14 years of production and R&D experience and has become a well-known brand
2. Professional production R&D team, sales and after-sales team
3. Advanced production testing equipment
4. Continuous R&D and certificate renewal funder investment
5. With a healthy development mechanism, employees work more actively, and the company develops rapidly
6. Many customers are all over the world, and the products are loved by customers and the market
Xinsu Global strives to provide customers with high-quality products and good services, creating more value and saving the time and energy for clients.

Packing List:

1 unit with 1 PE bag in 1 brown box:

75pcs/ctn

17.5kg/ctn

Carton dimension: 460*295*330mm

Shipment:

Xinsu Global can provide the professional freight service, Express, by air, by train, by sea.etc
