XSG1001000

Wall Plug AC-DC Adapter 10V 1A Switching Power Supply for Smart learning machine Small Home Appliances

Features：

10V 1A wall plug adapter with US, EU, UK, AU, JP, AR, BR, ZA, IN, KR, CN wall plugs to choose

Email Datasheet Video

Product Detail

Xinsu Global 10V 1A adapter with universal wall plugs to choose, can be used in the most countries. High voltage accuracy, high efficiency and low ripple noise. that are used for the medical devices, test instruments, communication products.

Wall Plug AC-DC Adapter 10V 1A Switching Power Supply for Smart learning machine Small Home Appliances

Model：XSG1001000, Safety certificates: CB, UL, cUL, FCC, PSE, CE, UKCA, CCC, KC

Input: 100-240Vac, 50/60Hz

Output: 10V 1A, 10W

Efiiciency: high than 81.9%, No-load less than 0.1W

Input:

1. INPUT VOLTAGE RANGE：90Vac to 264Vac

2. RATED INPUT VOLTAGE：100Vac to 240Vac.

3. INPUT FREQUENCY RANGE：47Hz to 63Hz

Output:

RATED OUTPUT	SPEC. LIMIT
RATED OUTPUT	Min. value	Max. value
Output regulation	9.5VDC	10.5VDC
Output load	0.0A	CC 1A
Ripple and Noise	-	＜150mVp-p
Output Overshoot	-	±10%
Line regulation	-	±1%
Load regulation	-	±5%
Turn-on delay time	-	3000ms
Hold up time	10ms	-
Hold up time	10ms-	-

Popular 10V Power Adapters

10V 2A Power Adapter XSG1002000;

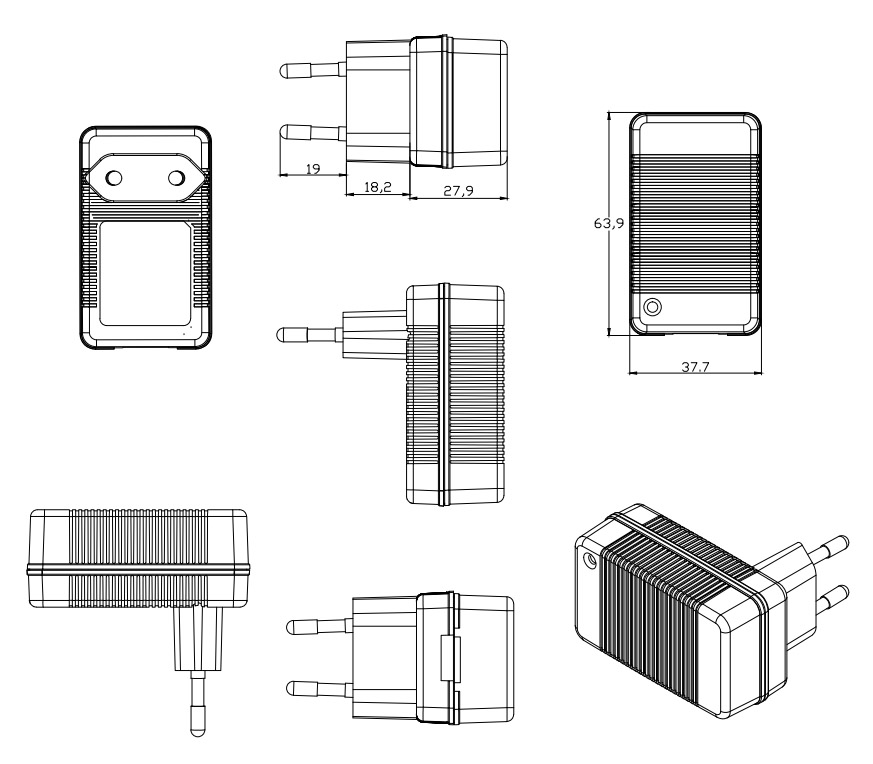

Drawings: L63.9xW46.1xH37.7mm

Package:

One charger in one brown box.

100 brown boxes in one carton.

16kg/ctn.

Production process:

production process

Xinsu Global exhibitions:

Xinsu Global Switching power supply 10V 1A advantages:

1. Xinsu Global, ISO 9001 certificated factory.

2. 10V 1A switching power supply, full safety certifications: CB, UL, cUL, FCC, UKCA, CE, SAA, CCC, KC

3. Wall AC plugs, EU, US/JP, AU, UK, AR, BR, ZA, KR, CN, IN 10 plugs are optional

4. 100% aging test for 4 hours to make sure the quality, long warranty.

5. Good pre-sales consultation, after-sales service

6. Many customers, occupying a large market share.

Xinsu Global, the professional switching power supply manufacturer , aims to provide the true certificated swithing power supply with high quality to global clients, to be the reliable supplier and partner. high quality safe power supply with competitive price bring more value to clients. The interchangeable wall plugs are popular during the sales markets, private mold and got the patent certificates. saving clients' time and bringing muchmuch more values to clients. If need the 9V universal chargers, just please leave messages to our sales engineers. you can also get more products on the site: www.xinsupower.com, just please contact our engineers for more details.
