South Korea 18W AC DC switching power supply adapter

Features：

18w AC DC adapter switching power supply KC KCC certificates, 3V -36v, 18W max, IEC62368, IEC60950, IEC61558, IEC60335, IEC60601, IEC61010 standards

Email Datasheet Video

Product Detail

18W 100-240V ac input to DC output switching power supply adapter South Korea wall plug

Model：XSGxxxyyyyKR, Safety certificates: CB, KC, KCC

Voltage: 3V to 36V, Current: 0.1A to 3A, power 18W max

Input:

1. INPUT VOLTAGE RANGE：90Vac to 264Vac

2. RATED INPUT VOLTAGE：100Vac to 240Vac.

3. INPUT FREQUENCY RANGE：47Hz to 63Hz

Output:

RATED OUTPUT	SPEC. LIMIT
RATED OUTPUT	Min. value	Max. value
Output regulation	3VDC	36VDC
Output load	0.0A	0.1A-3A
Ripple and Noise	-	＜150mVp-p
Output Overshoot	-	±10%
Line regulation	-	±1%
Load regulation	-	±5%
Turn-on delay time	-	3000ms
Hold up time	10ms	-
Hold up time	10ms-	-

Related Models:

XSG030yyyyKR	3V, 300mA - 3A	0.9W max
XSG042yyyyKR	4.2V, 300mA - 3A	12.6W max
XSG050yyyyKR	5V, 300mA - 3A	15W max
XSG060yyyyKR	6V, 300mA - 2.5A	15W max
XSG072yyyyKR	7.2V, 300mA - 2A	14.4W max
XSG084yyyyKR	8.4V, 300mA – 2A	16.8W max
XSG090yyyyKR	9V, 300mA - 1.8A	16.2W max
XSG100yyyyKR	10V, 300mA – 1.5A	15W max
XSG120yyyyKR	12V, 300mA - 1.5A	18W max
XSG126yyyyKR	12.6V, 300mA – 1.5A	19W max
XSG146yyyyKR	14.6V, 300mA – 1.2A	18W max
XSG150yyyyKR	15V, 300mA - 1.2A	18W max
XSG168yyyyKR	16.8V, 300mA – 1A	16.8W max
XSG180yyyyKR	18V, 300mA - 1A	18W max
XSG190yyyyKR	19V, 300mA – 900mA	18W max
XSG200yyyyKR	20V, 300mA – 900mA	18W max
XSG210yyyyKR	21V, 300mA – 850mA	18W max
XSG240yyyyKR	24V, 300mA – 750mA	18W max
XSG252yyyyKR	25.2V,300mA – 700mA	18W max
XSG290yyyyKR	29V,300mA – 600mA	18W max
XSG292yyyyKR	29.2V,300mA – 600mA	18W max
XSG294yyyyKR	29.4V,300mA – 600mA	18W max
XSG300yyyyKR	30V, 300mA – 600mA	18W max
XSG336yyyyKR	36V, 300mA – 500mA	18W max
XSG360yyyyKR	36V, 300mA – 500mA	18W max

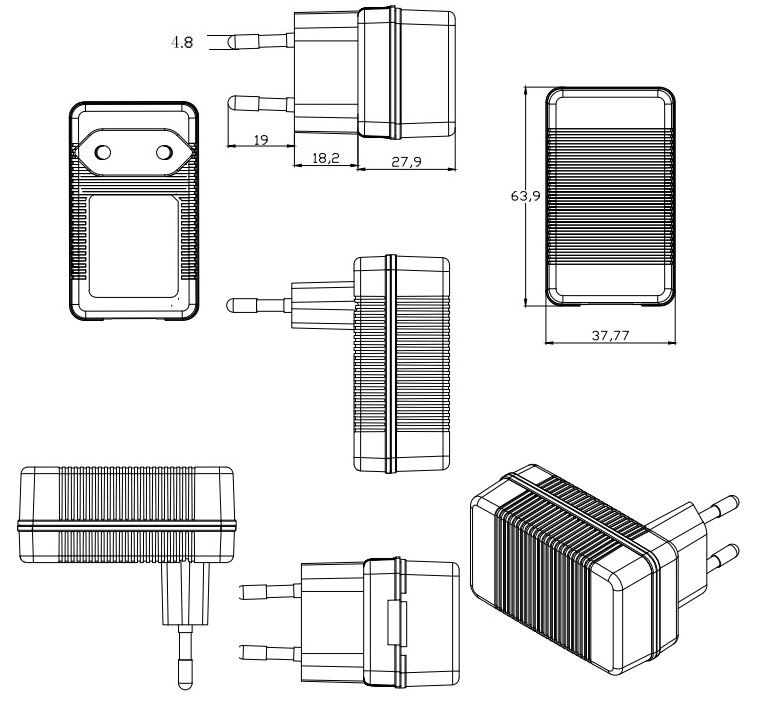

Drawings: L63.9* W40.9* H27.9mm
