10S 42V3A Lithium ion charger adapter

KC PSE UL CE GS UKCA SAA 42V 3A dc Lithium ion battery charger adapter

Features：

10s 36V lithium battery 42V 3A ac dc charger, CC ~ CV, trickle charger

Email Datasheet Video

Product Detail

10S 36V lithium ion battery charger with AC input 100 -240 Vac to dc output 42V 3A. Xinsu Global 42V 3A battery charger sealed PC enclosure, no fan in it. it is quiet and safe when charging the battery. commonly used for the portable power station, ebike, power tools, electric scooters, golf trolley.etc

42V 3A dc charger for 10s 36V lithium battery with DC connectors 5521 jack, GX16 3pin plug, XLR plug, xt60, xt30, SAE .etc

Model：XSG4203000, Safety certificates: CB, UKCA, UL, cUL, PSE, cUL, CCC, CE, GS, SAA

Output : 42V3A, power 126W max, CC-CV-Trickle current

Weight: 500g

Size: 153*61*39mm

HI-POT test: AC3000V, 10mA, 1 minute

Protection: over current protection, over voltage protection, short circuit protection, polarity reverse proetction, Secondary overvoltage protection. safe and fast

Wide AC voltage input:

1. INPUT VOLTAGE RANGE：90Vac to 264Vac

2. RATED INPUT VOLTAGE：100Vac to 240Vac.

3. INPUT FREQUENCY RANGE：47Hz to 63Hz

LED indicator: LED turn red to Green when fully charge the battery.

Charging Status	Charging Stage	LED indicator
Charging	Constant Current
Charging	Constant Voltage
Charged Full	Trickle Charging

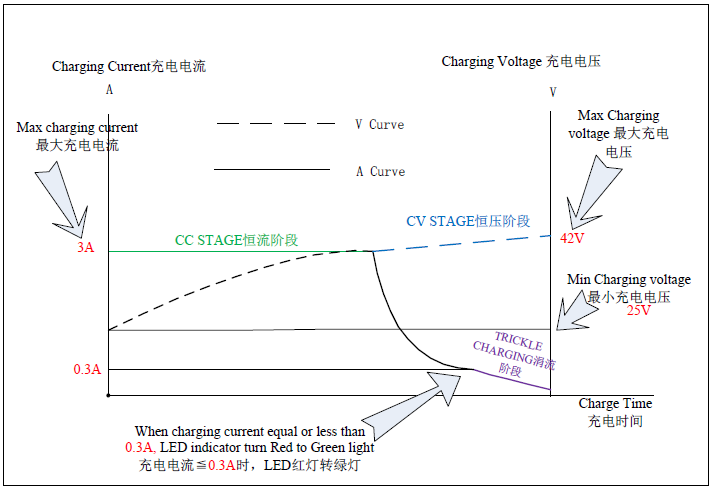

Working Curve:

42V 3A charger

Operation:

1. Connect the DC plug with the battery, please pay attention to the positive and negative polarity

2. Connect the AC power

3.LED indicator is red when battery is not be fully charged

4. LED indicator will be green when battery is full

Popular 42V Battery Chargers for 36V lithium battery pack:

42V 1.5A lithium battery charger XSG4201500; 42V 2A lithium battery charger XSG4202000

42V 4A lithium battery charger XSG4204000; 42V 5A lithium battery charger XSG4205000

Advantages compared with other 42V chargers

1. Full safety certifications, help the clients get the whole machine certificates easily

2. Sealed PC enclosure, fanless, much lighter, safer and quieter

3. Stable quality and long warranty

4. Supporting ODM and OEM

5. From the factory directly, easy to control the charger quality by the clients themselves.

Common DC output connectors:

GX16 -3PIN

C13

XLR -3pin

XT60

5521/5525

Production and samples:

Xinsu Global has strong development ability, can accept the OEM and ODM orders,

Normal sample lead time: 5-7 days

Mass production lead time: 30 days

Production process:

production process

How to ensure product quality?

1. Main engineers have more than 25 years experience

2. Rigorous quality inspection department

3. High-quality supplier system, components from the famous brands

4. Advanced production testing equipments

5. Strictly trained production staffs

6. 100% of all products are fully loaded with aging test for 4 hours

Xinsu Global factory is the ISO9001 quality management system certificated factory, we have been in the charger industry for more than 14 years, our chargers have the family style design-fish scale style,Increasing the heat dissipation area to facilitate internal temperature dissipation, thereby maintaining the stability of performance and prolonging the service life. Professional and enthusiastic sales engineers give customers the most professional advice. Xinsu Global is committed to becoming a reliable manufacturer of safety chargers for global customers, we will bring more values to the clients.if have any query, just please leave messages to us.
