XSG29615000 29.6V Lithium battery charger 15A

Desktop 29.6V 15A li-ion battery charger For Electric Scooter E-bike With Full safety certificates

Features:

29.6V 15A charger for the 7s 25.9V lithium battery pack, supporting OEM and ODM services

Product Detail

Desktop 29.6V 15A li-ion battery charger For Electric Scooter E-bike With Full safety certificates

Model:XSG29615000, Safety certificates: CB, UL, cUL, FCC, PSE, CE, GS, SAA, KC, CCC, PSB, UKCA

Output : 29.6V15A, power 444W max

 Battery type: 7s 25.9V lithium ion battery



Wide AC voltage input:

1. INPUT VOLTAGE RAGE:90Vac to 264Vac

2. RATED INPUT VOLTAGE:100Vac to 240Vac.

3. INPUT FREQUENCY RANGE:47Hz to 63Hz



LED indicator: LED turn red to Green when fully charge the battery.

Charging Status Charging Stage LED indicator
Charging Constant Current Red Green
Constant Voltage
Charged Full Trickle Charging Green Light

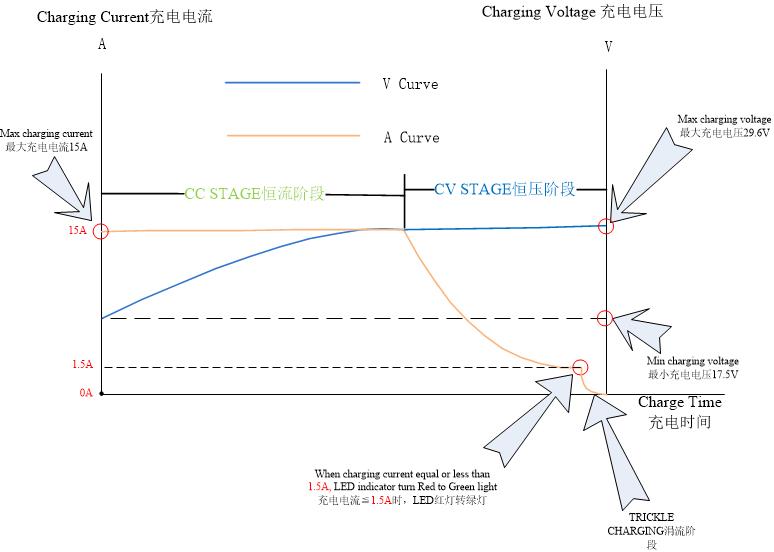

Charging Curve:

29.6V 15A锂电池充电器充电曲线图

Application:

Battery chargers for electric bikes, electric outboard motors, mobility scooters, golf trolleys, wheelchairs,Electric tricycles, Electric robots



Operation:

1. Connect the DC plug with battery, should pay attention the positive and negative polarity

2. Connect the AC power, If battery is not full, the charger LED indicator will be red

3. If the battery is full, the LED indicator will be green

4. If the battery is not full, the LED indicator is green, please check whether the AC terminal and DC terminal are properly connected



Popular 29.6V Battery Chargers for 25.9V lithium battery pack:

29.6V 7A lithium battery charger XSG2967000; 29.6V 8A lithium battery charger XSG2968000

29.6V 10A lithium battery charger XSG29610000; 29.6V 12A lithium battery charger XSG29612000;

#29.6V charger #29.6V 15A battery charger #Li-ion charger #UL charger #IEC60335-2-29 battery charger

Advantages compared with other 29.6V chargers

1. Full safety certifications, help the clients get the whole machine certificates easily

2. Sealed PC enclosure, fanless, much safer and quieter

3. Stable quality and long warranty

4. Supporting ODM and OEM

5. Good pre-sales consultation and after-sales service, make choice more simpler and bring more value to clients.

Common DC plugs



GX16 -3PIN

GX16-3pin

C13

C13

XLR -3pin

XLR-3pin

XT60

XT60

5521/5525

5521

Production and samples:

Xinsu Global has strong development ability, can accept the OEM and ODM orders,

Normal  sample L/T: 5-7 days

Mass production L/T: 30 days

Production process:

production process

How to ensure product quality?

1. Main engineers have more than 25 years experience

2. Rigorous quality inspection department

3. High-quality supplier system

4. Advanced production testing equipments

5. Strictly trained production staff

6. 100% of all products are fully loaded with aging test for 4 hours

Xinsu Global, the professional battery charger manufacturer with global safety certificates, the lithium 29.6V 15A chargers are exported to many countries. Supporting OEM and ODM services. the stable quality chargers bring much more values to clients.you can also get more products on the site: www.xinsupower.com, just please contact our engineers for more details.
